Point of Sale (POS) Systems
BEESWIPE point of sale units are smart POS terminals for card present transactions, conveniently integrated with a complete billing and logistical management system, utilizing proprietary BeeKash Payment Gateway Software.
Simply connect your BeeSWIPE POS system to the internet and it takes care of the rest!

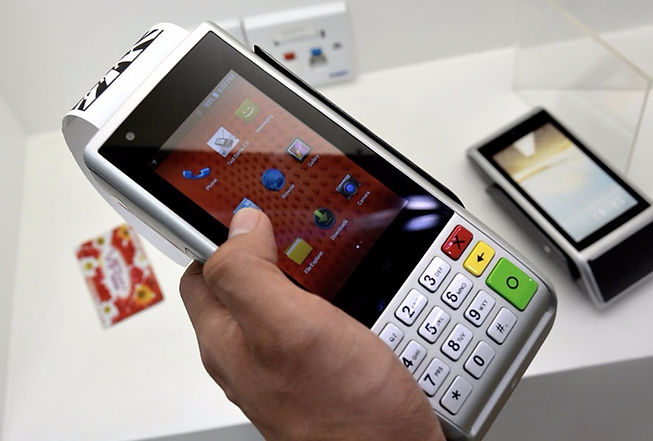

BEESWIPE S1000 Additional Pictures
BEESWIPE S1000 Specifications
-
OS: Android 5.1
-
Processor: ARM Cortex A7 1.1 GHz quad-core Main CPU(1.1G Hz) + secure CPU
-
Memory, MAIN SYSTEM: 1G byte DDR3 SDRAM; 8G byte eMMC (iNAND); SD Card Socket (support up to 32G byte)
-
Memory, SECURITY SYSTEM: 256KB flash; 12KB SRAM; 256-Bit, Battery-Backed, Flip-Flop-Based Secure Key Storage
-
Dedicated Cryptographic Memory Space
-
Magstrip card reader: Track 1&2&3, bi-direction
-
IC card reader: ISO7816,EMV certification
-
NFC card reader: Support ISO14443 TYPE A&B, FELICA, MIFARE
-
LCD: 4.5 Inch Touch screen (capacitive) ,Resolution: 960x540, backlit
-
Keypad: 15 numerical physical keys + Virtual keyboard
-
Printer: thermal, 8dots/mm,70mm/s, roll paper 58*30mm
-
2G: GPRS 850/900/1800/1900MHz
-
3G: WCDMA 1900/2100MHz;
-
4G: TD-SCDMA B34/39; LTE-FDD B1/B3; LTE-TDD B38/B39/B40/B41
-
Wi-Fi: 802.11 b/g/n
-
Bluetooth: BT Class4.0-EDR
-
GPS Capable
-
Camera: 5M pixel(back) 0.3 mega-pixel(front)
-
Develop Language: JAVA , HTML
-
Security: 3DES,Master/Session and DUKPT
-
Power Adopter: AC input 100 - 240V, 50/60 Hz; DC Output 5V 1A (MICRO USB );
-
Power Battery: 3.8V 4500mAh Li-polymer battery
-
Card Slot: 2* SIM + 1*PSAM+1*SD
-
Interface: 1 USB Device, 1 Audio Jack,1 UART, support OTG
-
Biometric Fingerprint (optional): Capacitive; Scan area size: 12mm*14.74mm; Active sensing area: 10.63mm*14mm; Fingerprint pixel: 152*200; DPI: 363; Spatial resolution: 363 DPI; Wear-and-tear:>1 million;
-
Barcode Scanner (optional): 1D and 2D scanner; 1D. EAN; 2D. QR
-
Physical Dimensions: 180 (L) x 81(W) x 49(D) mm
-
Environment: Operation Temperature:0 - 40℃; Storage Temperature: -20 - 60℃;Humidity:-10% to 90%
-
Certification: PCI 4.0, EMV L1 & L2, CE, QPBOC L1 & L2
Apply Now For A Merchant Account and POS System
BEESWIPE S1000
-
EMV L1 & L2; PCI PTS 4.x certified
-
Android 5.1 OS
-
Magstrip/IC/NFC Card Reader
-
4G / 3G / 2G / Wi-Fi / Bluetooth/GPS
-
4.5 Inch Touch Screen
-
Numerical PIN Pad
-
Front & Rear Camera
-
58x30mm Thermal Printer
-
Biometric Fingerprint (Optional)
-
1D & 2D Code Scanner (Optional)
BEESWIPE 7
-
BEESWIPE 7 is a secure electronic payment terminal with Android 5.1 OS, PCI PTS 4.x, SRED, and supports RSA, AES, 3DES
-
Large 5.5”color display with virtual keyboard
-
Magstrip/IC/NFC card reader, multi-payment, Alipay, Wechatpay
-
4G / 3G / 2G Wi-Fi / Bluetooth multi-communication; FBI & STQC Biometric Fingerprint and 1D/2D Code Scanner are optional; Electronic signature capture and massive amounts of memory to enable exceptionally fast processing of applications.
BEESWIPE 7 Additional Pictures
BEESWIPE 7 Specifications
-
OS: Android 5.1
-
Processor: Qualcomm MSM8909, Processor: 4-core ARM Cortex-A7, CPU 1.1G; Hi-performance K21F Security Processor
-
Memory: MAIN SYSTEM: 1G byte DDR3 SDRAM8G byte eMMC(iNAND),SD Card Socket (support up to 32G byte); SECURITY SYSTEM: 256KB flash12KB SRAM256-Bit, Battery-Backed, Flip-Flop-Based Secure Dedicated Cryptographic Memory Space. Key Storage.
-
Magstrip card reader: Track 1&2&3, bi-direction 1/2/3, compliance with ISO7811, lifetime: 500,000 times
-
IC card reader: Compliance with EMV& PBOC, support type A(5.0V), type B(3.0V) or type C (1.8V), Lifetime: 500,000 times
-
NFC card reader: Compliance with ISO/IEC 14443 standard, Type A&B, Mifare card, Felica card, Compliance with qPBOC, PayPass, PayWave
-
LCD: 5.5 inch, solution: 1280*720;
-
Touch Screen: Capacitance, 5 points full touch screen
-
Indicators: Four NFC indicators, one power indicator
-
Button: One power on/off, No volume up or down button
-
Printer: thermal, 8dots/mm,70mm/s, roll paper 58mm x 30mm
-
Communication: Support All Netcom:4G/3G/2G Support Frequency Band: GSM900/DCS1800WCDMA: Band 1/5/8CDMA2000 1X/EVDO BCOTD-SCDMA: B34/B39LTE-FDD B1/B3/B5/B7/B8; LTE-TDD B38/B93/B40/B41
-
Wi-Fi: A smart module with Wi-Fi by itself , 802.11 b/g/n
-
Bluetooth: A smart module with Bluetooth by itself , BT Class4.0-EDR
-
GPS
-
Camera with Flash: Front: 200m pixel; Rear: 500m pixel
-
Develop Language: JAVA , HTML
-
Security: 3DES,Master/Session and DUKPT
-
Power: AC input 100 - 240V, 50/60 Hz; DC Output 5V 1ATwo battery connect type 18650, 4600MA Li-polymer battery
-
Card Slot: 2* SIM + 1*PSAM+1*SD
-
Port: One micro USB, OTG model; a charge stand on bottom, support OTG
-
Chip: Built-in hard encryption chip, support SM2,SM3 and SM4 algorithm
-
Speaker: Power: 1W ,supports a variety of standard format of audio playback
-
Buzzer: PWM control
-
Microphone: Support
-
Power Adopter: 5V/2A
-
TF Card: One
-
Multi-media: Support the recording, voice broadcast and 720 p video playback
-
Biometric Fingerprint (optional): Capacitive; Scan area size: 12mm*14.74mm; Active sensing area: 10.63mm*14mm; Fingerprint pixel: 152*200; DPI: 363; Spatial resolution: 363 DPI; Wear-and-tear: >1 million.
Apply Now For A Merchant Account and POS System

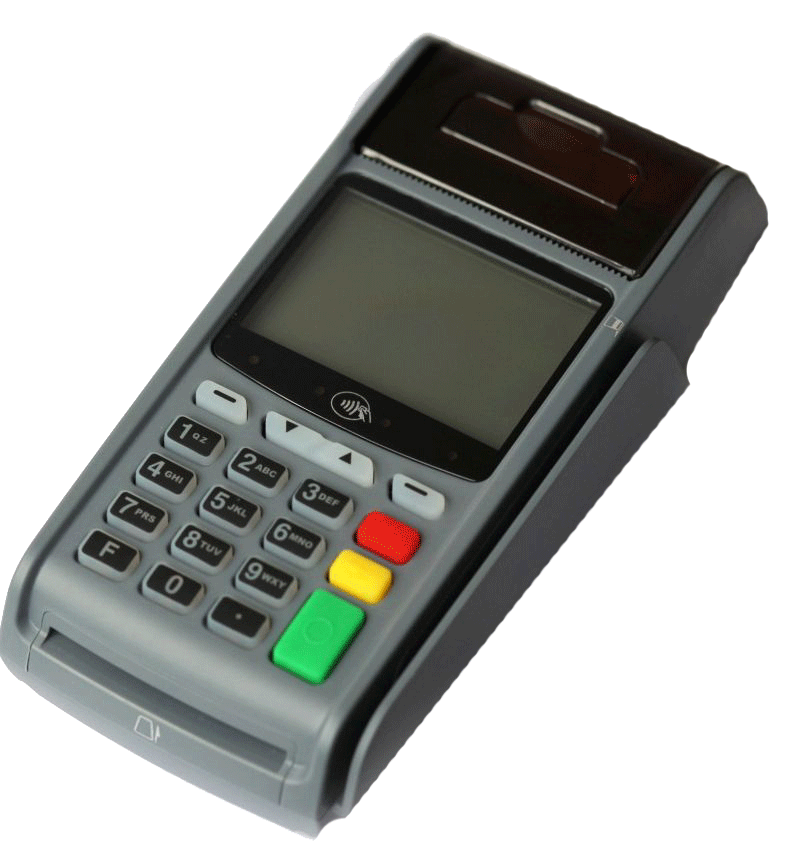

BEESWIPE M3000
-
Ergonomic design with a big backlit screen and big keypad buttons with backlit design
-
Magnetic Card Reader
-
Smart Card
-
Contactless IC Card (Optional)
-
Big-Capacity Lithium Battery
-
High Speed (32-bit ARM11 Processor)
-
CE Certified
BEESWIPE M3000 Specifications
Gray
Black
-
Processor: ARM11 32bits high speed processor
-
Memory: 128M FLASH and 64M DDR SDRAM
-
Wireless module: GPRS: 900/1800MHz (Support SMS and USSD)
-
Peripheral ports: 10M/100M Ethernet (optional); Synchronous MODEM dialing (optional); 2 Serial ports with 5V output; 1 USB OTG; 1 power interface
-
Card slots: 1 SIM; 3 SAMs
-
Smart card reader: Confirm to PBOC3.0,ISO7816 and EMV4.3 L1&L2 standards
-
Magnetic card reader: Track 1/2/3, bi-directional
-
Contactless card reader (optional): Confirm to QPBOC, ISO14443 Type A&B standards and MIFARE, Felica standards
-
LCD Display: 2.8’’ TFT 320*240 color display
-
Keypad: 19 keys including numeric keys, functional keys and alphabetic keys.
-
Printer: Built-in high thermal printer (printing speed: 16lps; paper roll width and diameter: 58mm/40mm )
-
Security: Support MKSK,DUKPT and FIX key management; Support TDES, RSA, HASH and SM2/SM3/SM4 encryption; algorithms, and X9.9, X9.19 MAC algorithm
-
Develop package: Standard LINUX system with standard C language
-
Power input: Input: AC 100 - 240V, 50/60 Hz Output: DC 9V/4A; 7.4V 2000mAh big-capacity lithium battery
-
Environmental: Working temperature: 0 - 40℃; Storage temperature: -20 - 60℃; Humidity: 5% - 90%
-
Size: 187*87*58mm(L*W*H)
-
Certifications: PCI PTS 3.X; EMV L1 & L2; PBOC 3.0 L1 & L2,QPBOC; L1&L2; CCC; CE; ROHS; Telecom network, China Union Pay.
